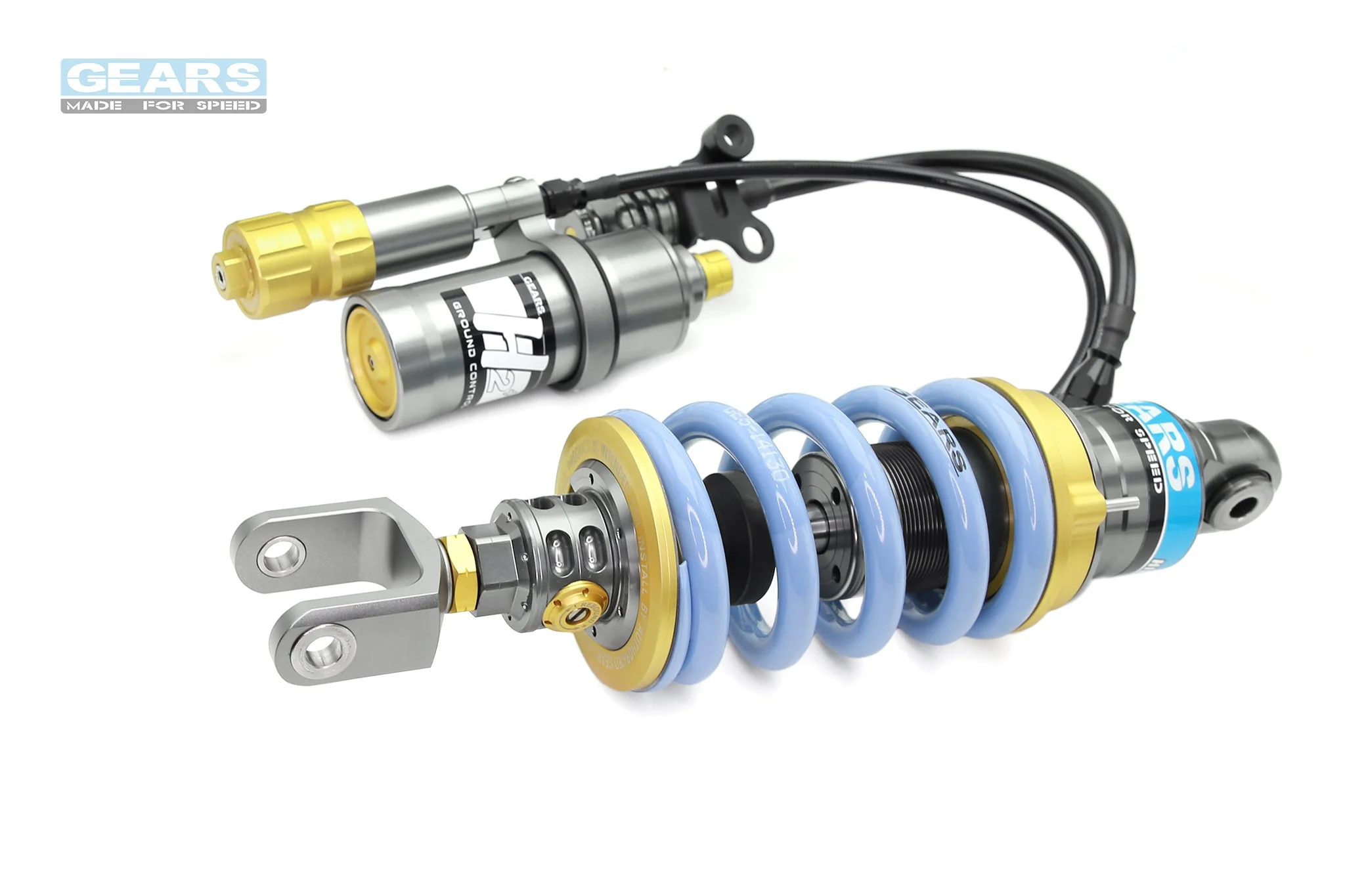

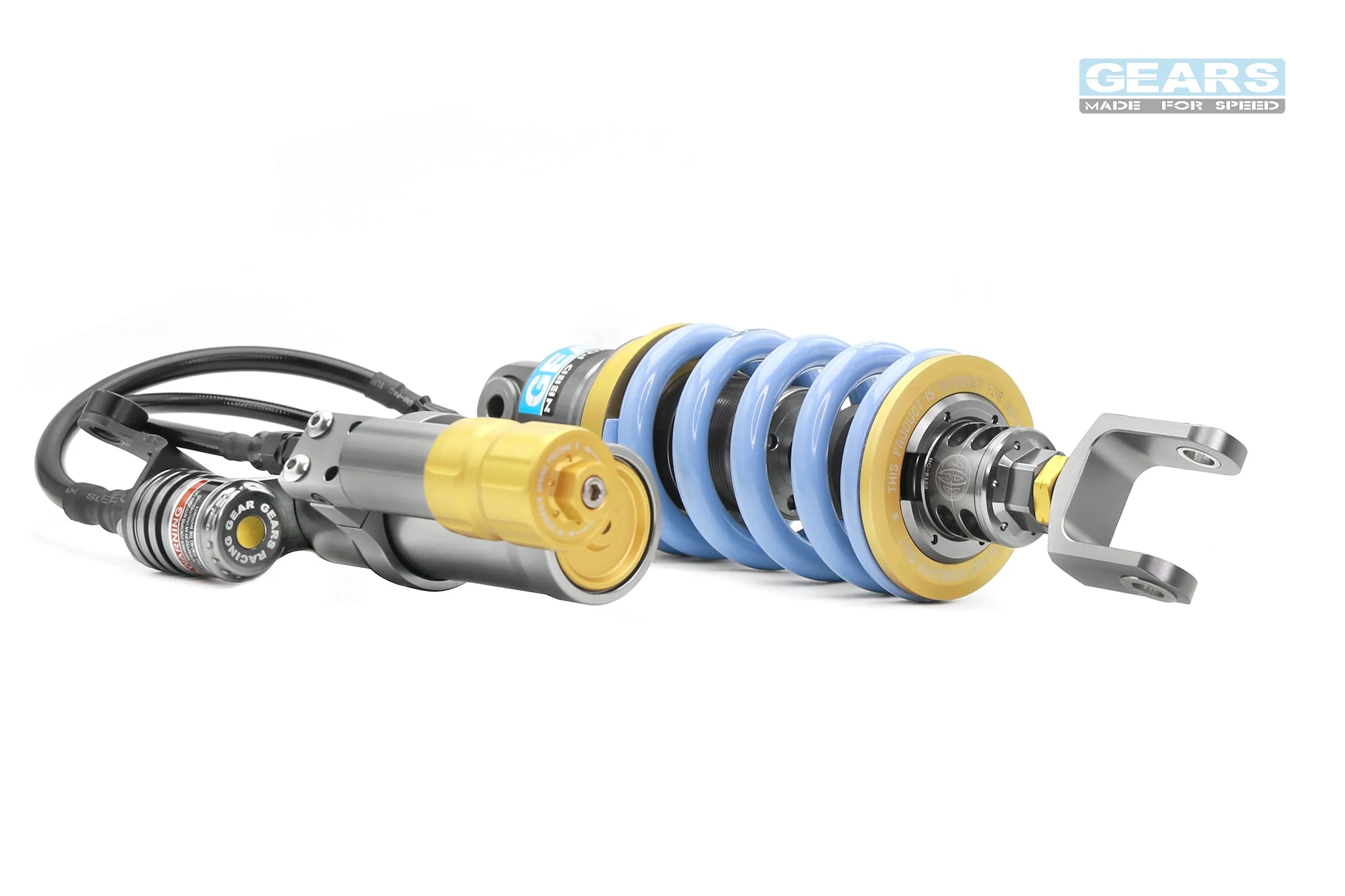

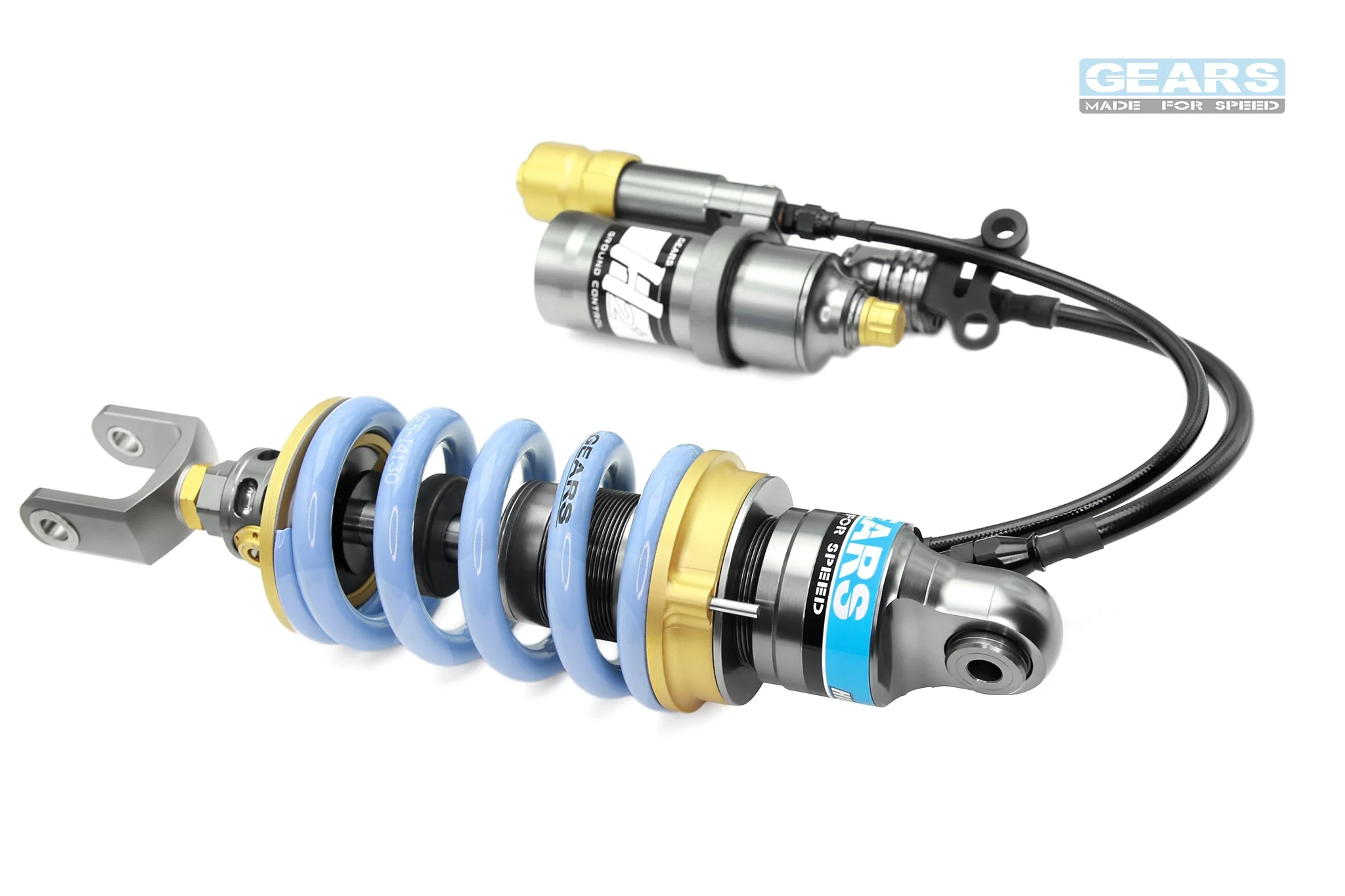

Damping Strengthen Kit HPR

• Monotube Oil & Gas Separator Design:

Monotube design holds a larger volume of fluid and allows for a separate gas chamber. The separator design also eliminates cavitation caused by the mixture of oil and gas. This allows for stable continuous damping throughout the different performance settings.

• Active Valve Piston:

Wide range valve piston helps the simple harmonic motion control function for extra comfort even on the toughest road conditions.

• 2-Way Damping Adjustment:

Adjustable damping allows for 15 clicks of rebound and 10 clicks of compression, allowing the rider to fine tune according to road or track conditions.

• Spring Preload Adjustment + Internal Gas Chamber:

Spring preload adjustability provides the user the ability to set their desired riding preference. This combines with the internal gas chamber to sub-support the spring compression??¢s wider range of settings with easy adjustments.

• Extra Volume Compressed Air:

Unlike traditional design, Gear??¢s extra volume innovation fluid & gas separator design allows additional volume of oil and high-pressured gas to assist the shock and effectively absorb the impact but still maintain the comfort and control.

• Preload Adjustment:

Spring preload provides users the adjustability needed to set their desired driving or riding preference.

• Height Adjustable:

Some applications allow for height adjustment (*Maximum 5mm).

• Warranty:

All Hill shocks are covered by a 12 month limited warranty from the original date of purchase. （Taiwan Onlyï¼?/p>

?

* Installation fee is not included.

* Optional Black Edition available on some models: Add $50.00

?

?
